Home Products Vehicle control unit All-in-one auxiliary power controller

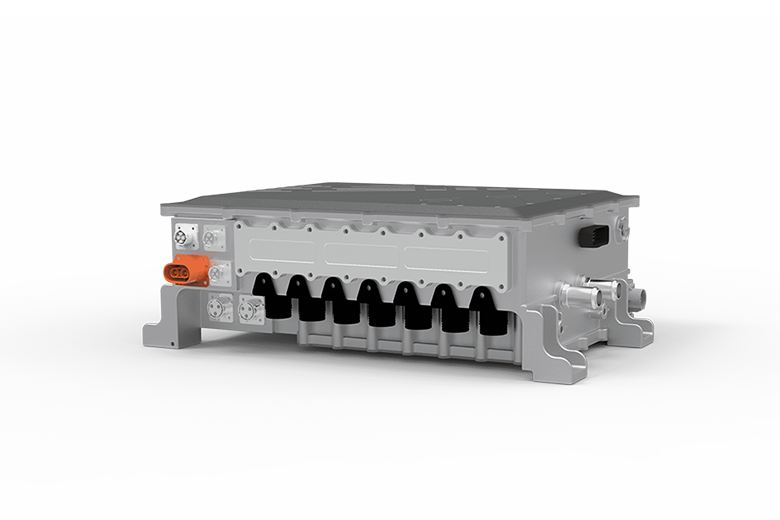

5-in-1 Integrated controller

Rated power	80KW / 100KVA
Peak power	160KW / 200KVA
Input voltage range	250VDC~750VDC
MCU parameters	/
Rated output current (RMS)	200A/260A
Peak output current (RMS)	420A(1min)/560A(1min)
Input rated voltage	540VDC
DCAC (Oil Pump)	5.5kw/7.5kw (choose one)
DCAC (Air Pump)	5.5kw/7.5kw (choose one)
DCDC:	Output voltage: 27±0.5VDC, output power 3KW/5KW/6KW (choose one)
PDU	Power distribution circuits such as main-drive pre-charging, fast charging, air conditioning, PTC, battery heating, and bodywork
Size	584390195.5

Multi-outlet connection

To meet the wiring mode of different car models, lower outlet and flat outlet. Reduces the impact of bending the wiring harness of the whole car and the space for mounting.
Double-layer partition design

Power main drive module and small power auxiliary drive DCAC+DCDC module are arranged in partitions, with full utilization of space and less interference.
Intelligent power distribution control and diagnostics

Customized and integrated embedded high voltage control boards can accommodate contactors to achieve CAN control as well as contactor status diagnostics. Reduces internal and external harnesses and interference.
One machine with multiple control

It can realize one control board to control multiple module driver boards, with better cost and less space.
